Pipeline Body O₂ DISS Manifold and Panel Mount MPOS

1006-5149-000
Anesthesia Delivery
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Easy to remove
  • Easy to replace
  • Corrosion resistant
  • RoHS compliant

Product Overview

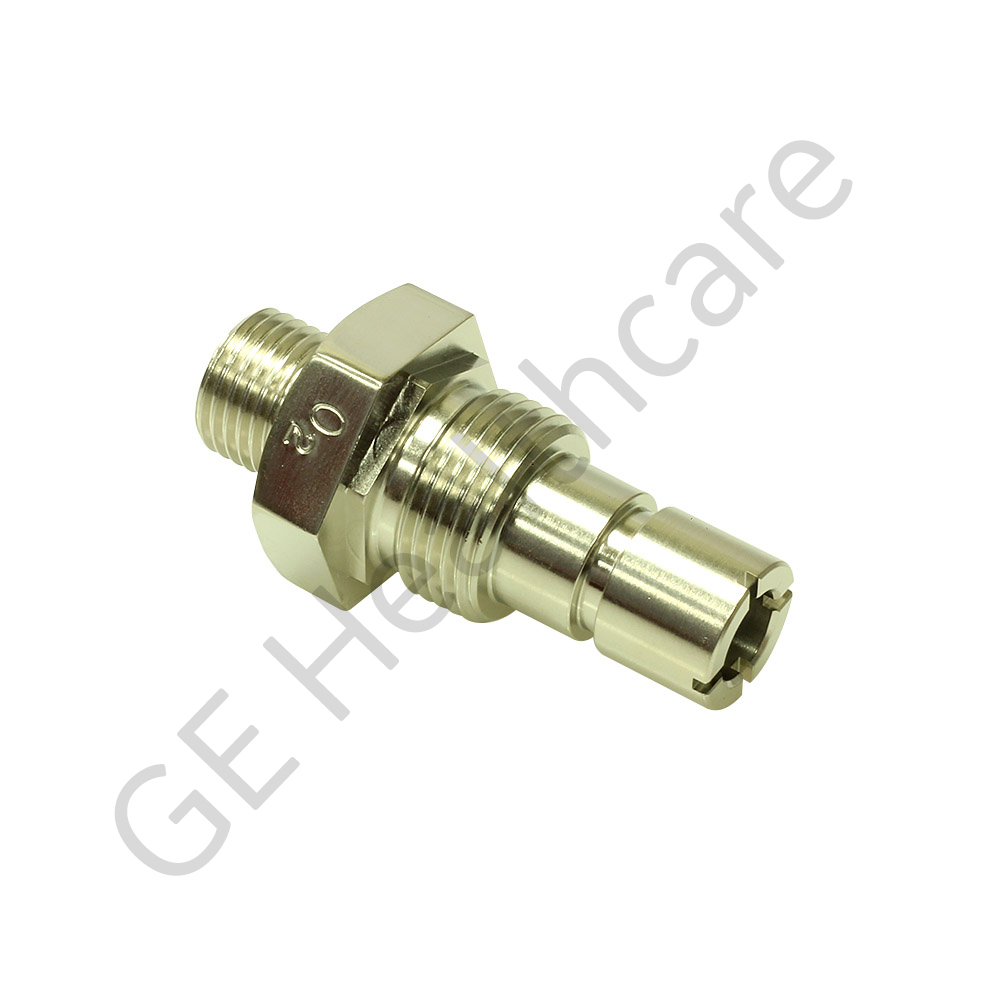

The Pipeline Inlet Fittings are used in the oxygen (O₂) supply system for anesthesia delivery. This inlet is connected with Diameter Index Safety System (DISS) for medical gases. This is a non-interchangeable threaded fitting or non-interchangeable screw threaded (NIST). This in turn connected with a metal filter, check valve and an O-ring. The DISS is a gas station outlet system used in supply medical gas. It is threaded at one end and have different diameter for each type of supply to avoid wrong connection. These pipeline inlets located near the yoke blocks for cylinders. Generally, oxygen supply cylinder and pipeline are green colored for easy identification. The uni-directional check valve is located downstream from the pipeline inlet, it prevents reverse flow of gas or air from the machine into the piping system. Each inlet is fitted with filter with a pore size of 100µm or less. The O-ring used for the check valve should be lubricated with Krytox. The material 360 brass provides corrosion resistance and better machinability. B16 brass has a thin protective layer which protects the surface from getting corroded when exposed to the atmosphere. It is a high density material.

Compatible Products

Aestiva WU_0042

Aestiva WU_0042

Avance

Avance

Aespire WU_0039

Aespire WU_0039

Aisys

Aisys
