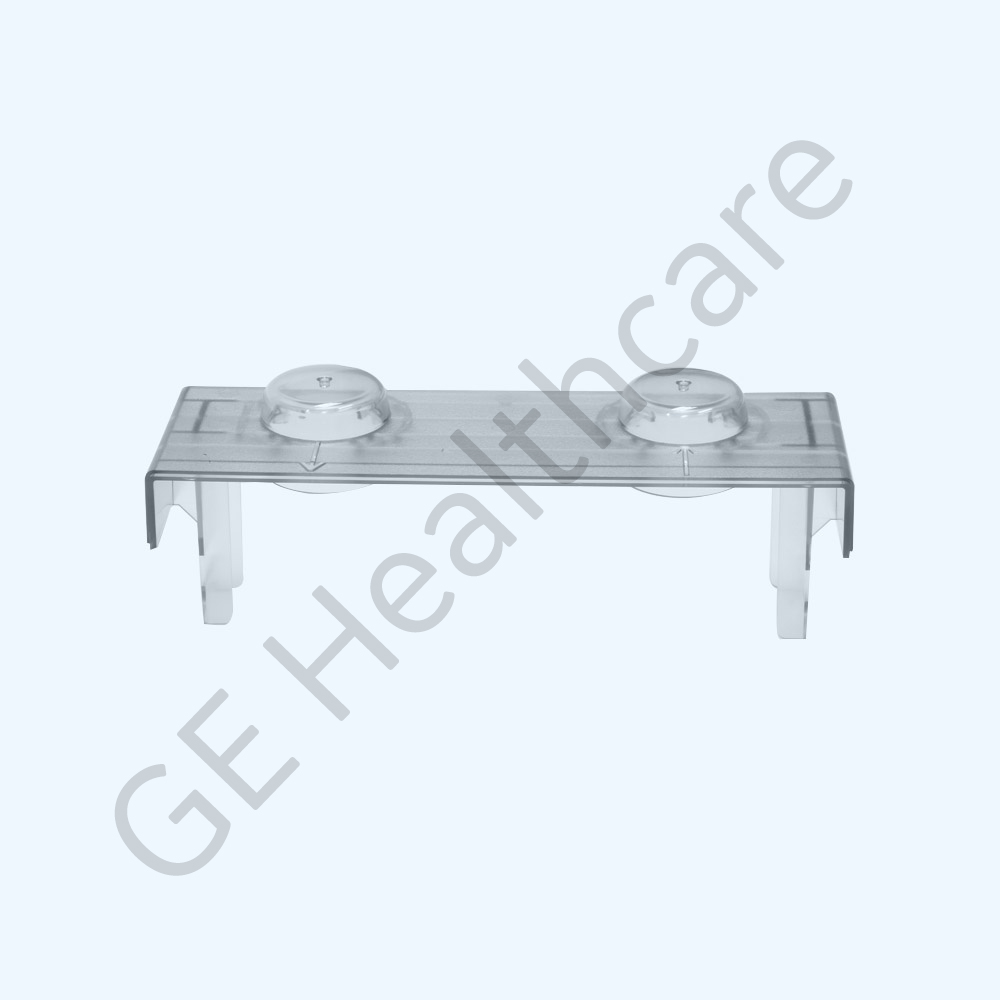

Lens Circuit Module Breathing Circuit Gas Breathing System
1406-3394-000 | |
Anesthesia Delivery | |
GE HealthCare | Outright |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Superior chemical Resistant
- Good acid Resistant
- Excellent Thermal Stability
- Good Dimensional Stability
Product Overview
The Lens Circuit Module Breathing Circuit Gas Breathing System is a lens circuit that is one of the components in breathing circuit assembly module. A breathing circuit module consists of a check valve lens which is made up of PPSU and bonded to the top of the assembly. The material Radel® R-5000 polyphenylsulfone (PPSU) provides a high deflection temperature and possess good electrical properties. The material has a better impact strength and chemical resistance when compared to other material in the polysulfone group. The lens circuit walls are 3.0 draft thick. The ejector pin and gate heights are flush to 0.4. The maximum flush permissible is 0.1 wide × 0.1 high and it should be free from scratches, bubbles, marks, sharp edges and corner. The finish is mold tech MT-11010 on all cavity side surfaces. This lens circuit is used in many medical devices such as ARC Aestiva 7100, ARC Aestiva MRI, Aestiva Compact and Aestiva GoldSeal.
